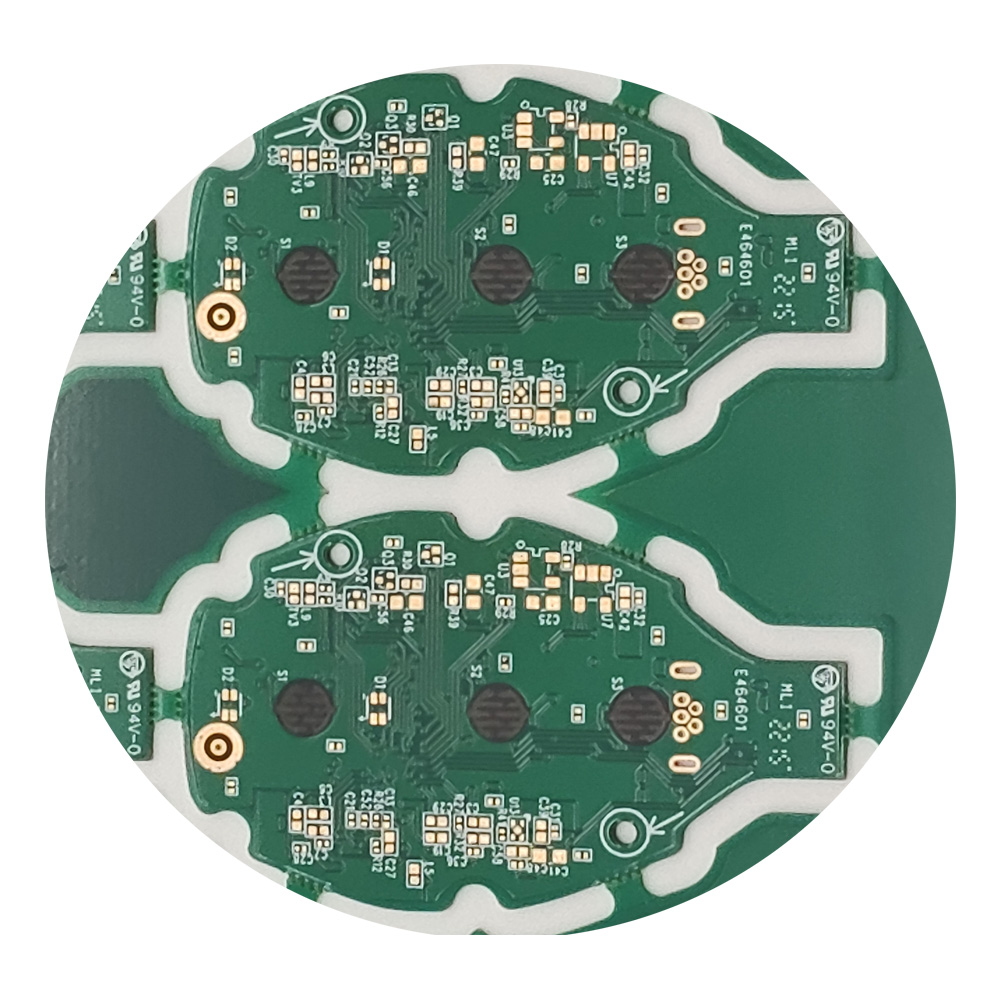

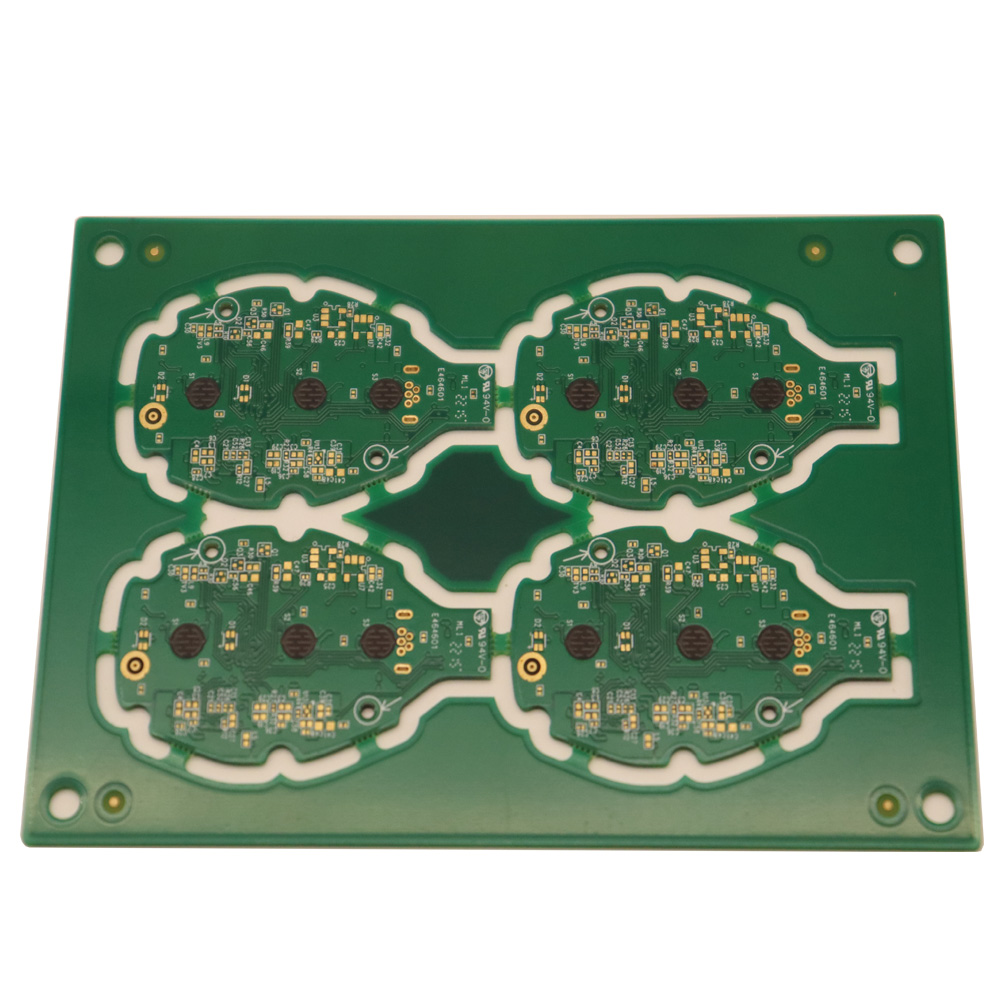

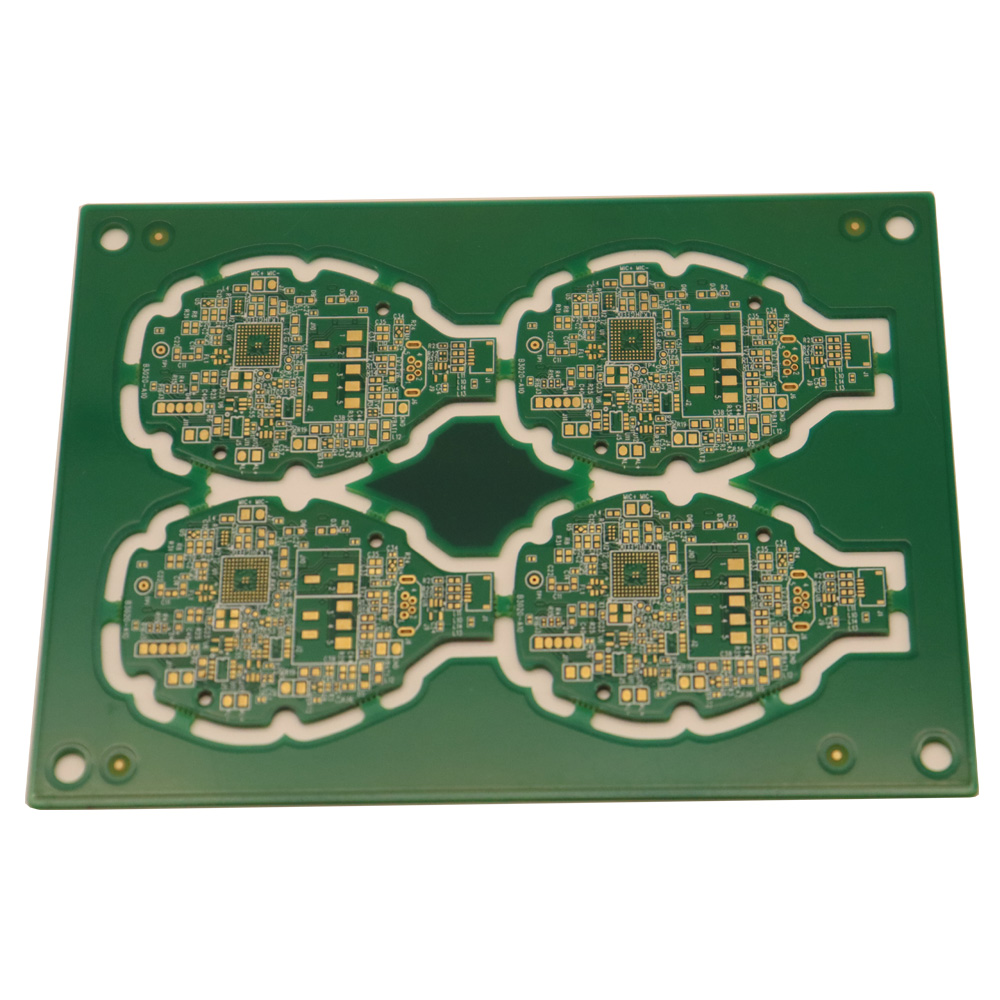

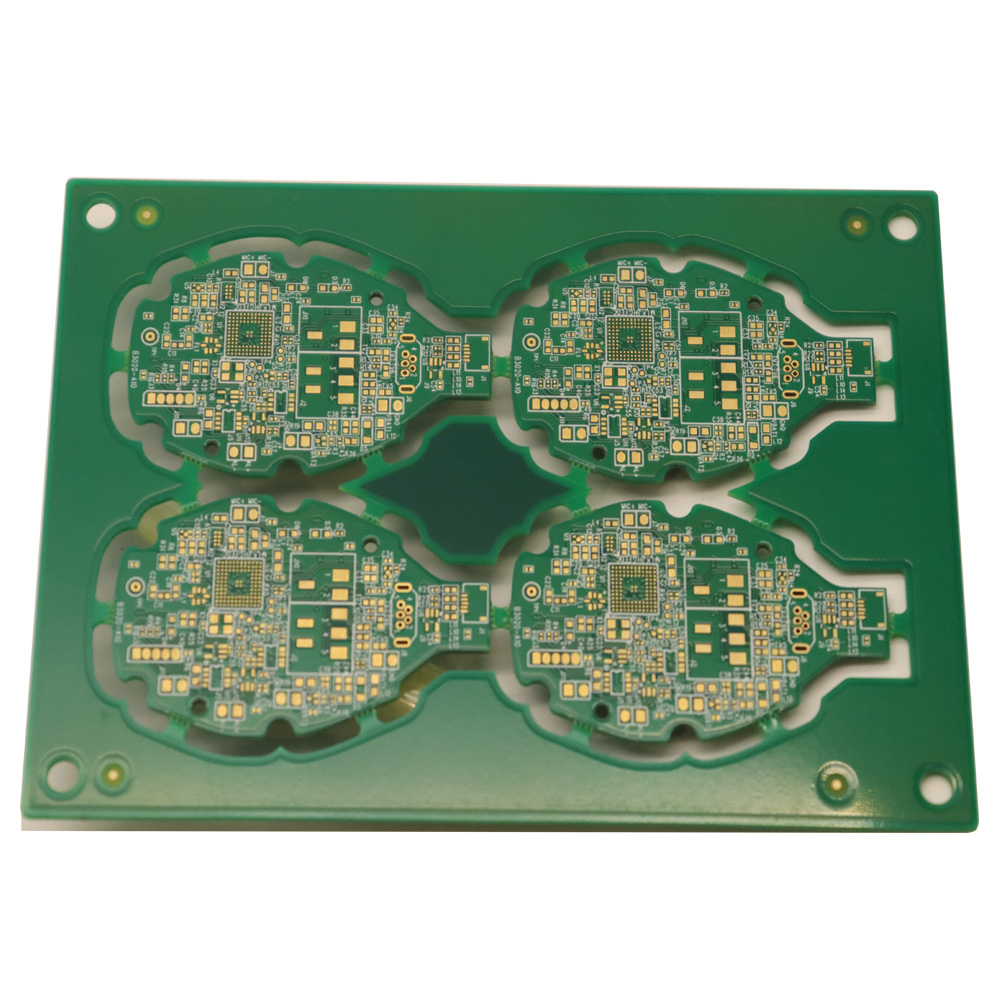

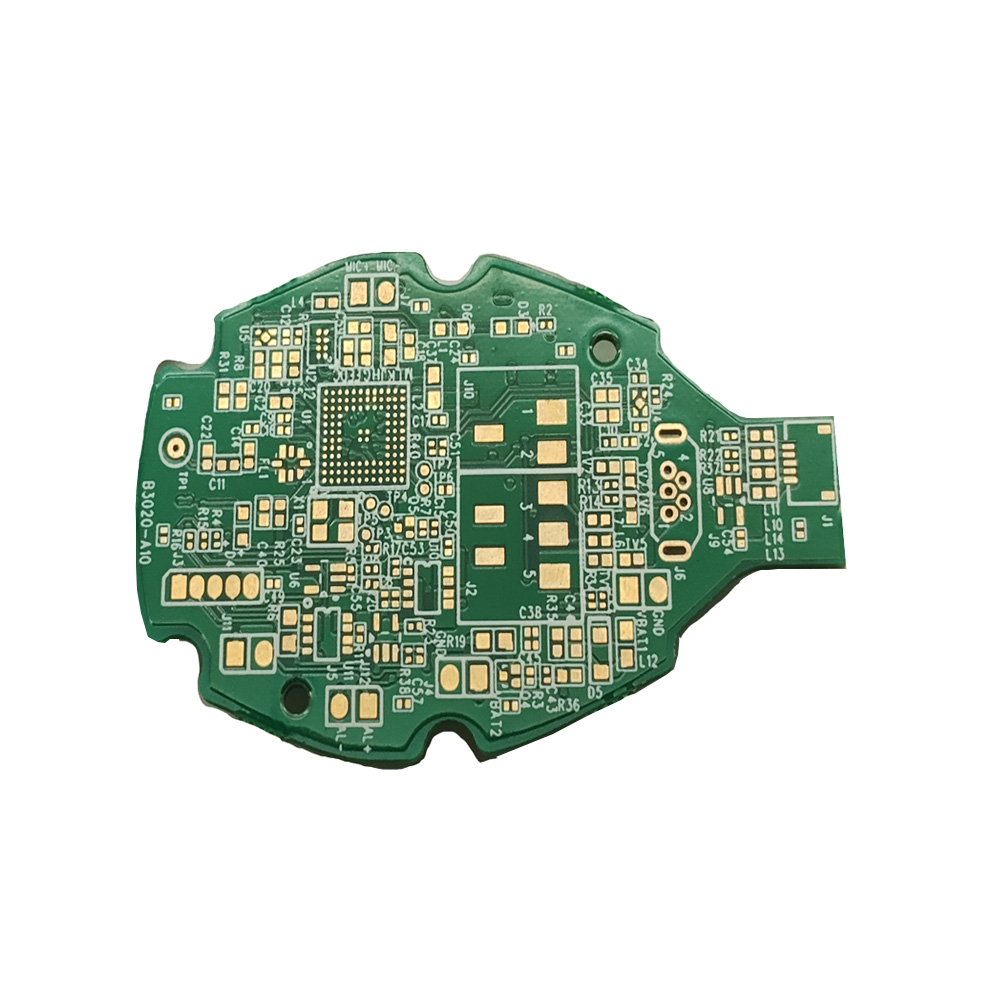

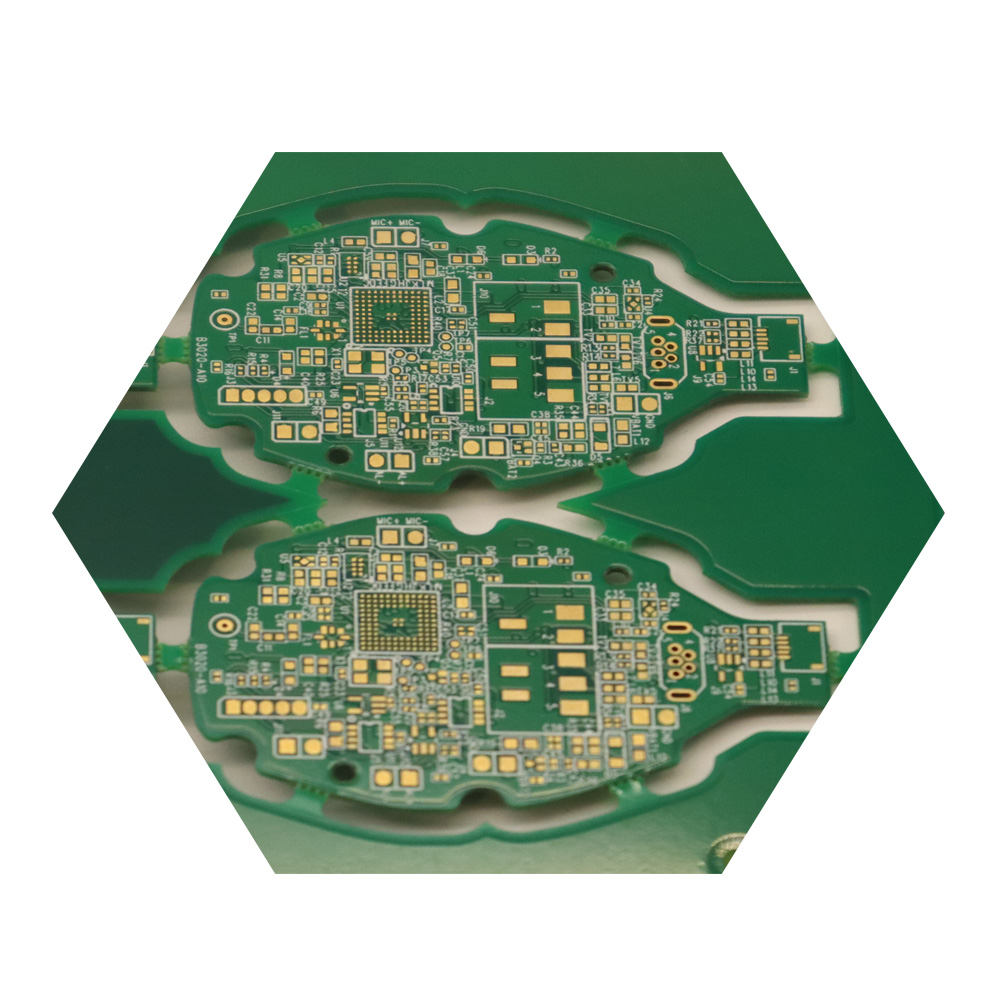

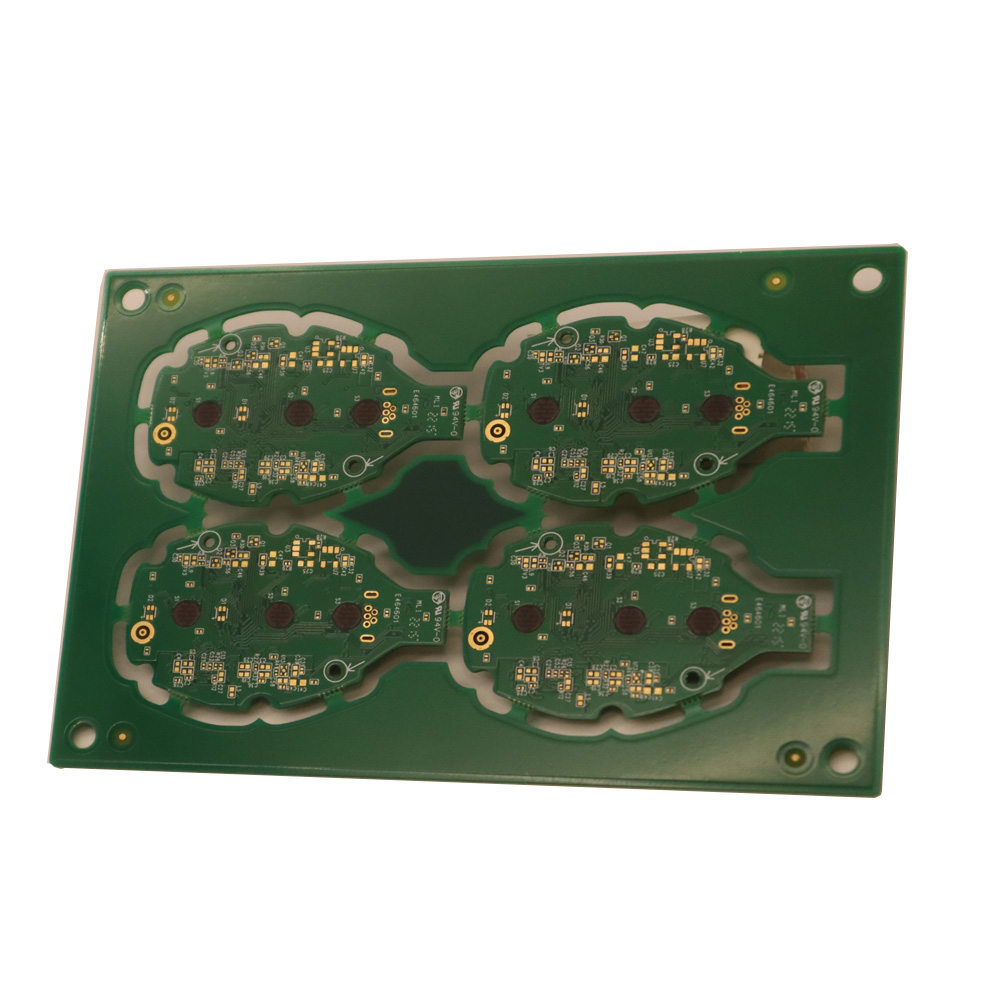

Car door remote control panel

Part number:6G18368

PCB layer:6 L

Material: FR4 Tg170 1.6mm 1/1oz for all layer

Product flammability Rating: 94v0 (Highest Grade)

Product Type: Plating Through Hole PCB

PCB Style:Muiltilayer PCB

Surface Finished:ENIG

Carbon ink printing:Yes

Conductor width: 0.20mm

Conductor space:0.20mm

Min Hole size:0.35mm

Key Feature Description:

1) Quality level for Class 3 IPC standard

2) X-out PCB:No

Product Description

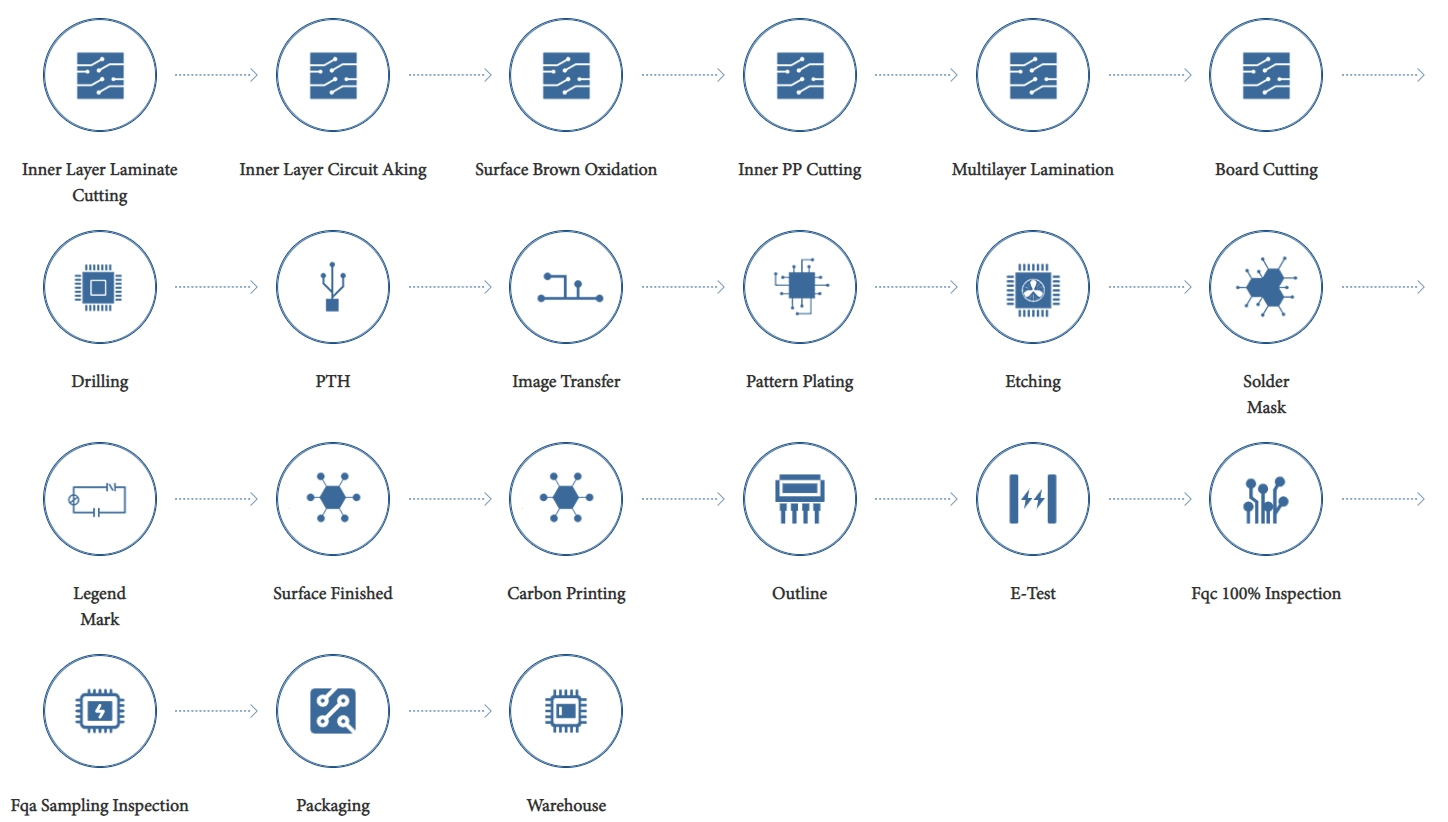

PCB manufacture flow:

This is the fabrication flow about the multilayer PCB circuit board PCB , as you know,PCB of manufacture flows are too many, with more than 20 different processes, and each process has its sub-steps, Here, we will focus on the main manufacturing processes for you reference.

Process:

Process

Technical Difficulty Control

01 Special material and strict manufacturing tolerance

In the production of medical circuit boards, selecting high TG materials or those with equivalent properties is critical due to their superior high-temperature resistance. These materials ensure the PCB can withstand the demanding thermal conditions often encountered in medical applications, such as sterilization processes and extended operational periods. Additionally, the tighter manufacturing tolerances required for these boards ensure greater reliability and performance, which are essential in medical environments where precision and safety are paramount.

02 Good Quality Made

Good PCB quality stems from our company's commitment to technological innovation and relentless in-depth research.

It is also a result of our advanced manufacturing equipment and the hard work of our well-trained, high-quality employees.

Dickson Circuit Shenzhen Ltd, with its expertise in high-density PCB manufacturing, is well-equipped to produce complex multilayer boards for medical devices. The company ensures that these boards meet both the stringent performance requirements and regulatory standards essential for medical applications.

03 Manufacturer Description:

1. Brand: SDY&Dickson

2. Company Certification: ISO9001,IATF16949,ISO140001

3.UL Recognized: USA UL, Canada UL,CQC

4. Product Manufacture Standard: refer to IPC standards

•IPC-2222: Design standard.

•IPC-4101: Laminate’s specification.

•IPC-SM-840: Solder Mask Performance of Specification.

•IPC-600: Rigid PCB Quality Inspection Standard.

•IPC-6012:Rigid PCB Fabrication Specification.

•IPC-6013:FPCB Fabrication Specification.

•IPC-TM-650: PCB Quality Test Method.

5.Manufacture Service:

Production Volume:

1) High-mix (Small,Medium and Large scale)

2) PCB Prototype:Yes

3) Quick-Turn PCB:Yes

4) Solder Paste Stencil Manufacturing
